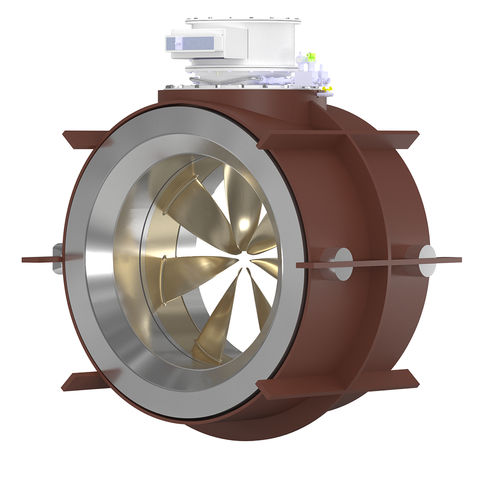

Azimuth thruster RDT 800
tunnel typefor shipsRIM-drive

Azimuth thruster - RDT 800 - Brunvoll - tunnel type / for ships / RIM-drive
Azimuth thruster - RDT 800 - Brunvoll - tunnel type / for ships / RIM-drive
Azimuth thruster - RDT 800 - Brunvoll - tunnel type / for ships / RIM-drive - image - 2
Azimuth thruster - RDT 800 - Brunvoll - tunnel type / for ships / RIM-drive - image - 3
Add to favorites
Compare this product


Characteristics

Type
azimuth
Assembly
tunnel type
Application domain
for ships
Other characteristics
RIM-drive
Power

Max.: 1,400 kW
(1,903.5 hp)

Min.: 200 kW
(271.9 hp)

Thruster diameter

800 mm, 1,000 mm, 1,250 mm, 1,800 mm, 2,100 mm
(31 in, 39 in, 49 in, 71 in, 83 in)

Description

Sustainable Tunnel Thruster with motor and propeller in one compact unit Efficient operation High degree of manoeuvrability Low noise and vibration Compact design with savings in weight and space No transmission losses Reduced cost by system simplicity A Green Solution - due to reduced emissions from great efficiency RDT - Thruster design features Compact electric RDT with thruster, propeller and Permanent Magnet motor in one unit No need for external motor, shafts or couplings Optimized propeller blade thickness and the radial load distribution is designed to enhance propeller efficiency No oil pollution as the bearing design eliminates need for oil lubrication Arrangement flexibility increased by the compact design No central shaft and no shaft supporting struts improves propeller efficiency and reduces propeller induced noise and vibration. Simple installation saves time and cost. Complete system deliveries One source - one responsibility For optimal performance Brunvoll takes responsibility for delivering complete systems and for providing support throughout the lifetime; from design, production, installation and commissioning, through daily operation. Ask us for a complete thruster system including: VFD for the motor BruCon Control, Alarm and Monitoring system BruCon Joystick and DP
