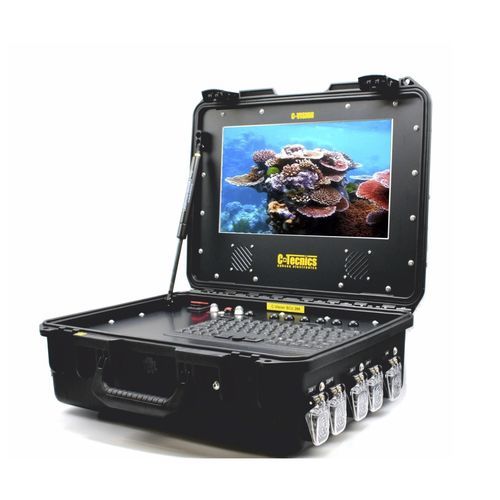

Underwater video camera control console C-Vision IP

for ROV

Portable, IP-based High Definition Video Monitoring and Recording System Owing to its rugged yet lightweight design and ease of setup, the C Vision IP is an ideal video monitoring system for a range of subsea applications, capturing sharp video in full HD. A complete package allows up to 8 cameras to be viewed at one time while the video can be recorded and stored directly to the internal SSD for further processing on the integrated PC system. The C-Vision IP can also be fitted with a 2-wire or 4-wire communications system for up to 4 divers. Technical Specification Dimensions: 487 x 386 x 185mm Weight: 13.5 Kgs IP rating: 67 (closed), 65 (open) Input power: 96 264 VAC Power consumption: 300W Internal storage: 500GB SSD Operating system: MS Windows 10 Keyboard: 84 key UK QWERTY Umbilical input: 12 pin Souriau UTS Display (on-board): 15.6” LCD Panel Display (external): HDMI Video Channels: 1-8 (5+ requires junction pod) Supported Video Formats: PAL/NTSC Recorded Video Resolution: 1920 x 1080p 25/30fps Video File Format: MP4 Communications: 3ch simplex / 4ch duplex (optional) Other interface: 2x USB A, 1x ethernet Applications Commercial Diving Underwater Inspection Underwater Survey Marine Research
