Marine switch HR

electrical circuitwaterproofrocker

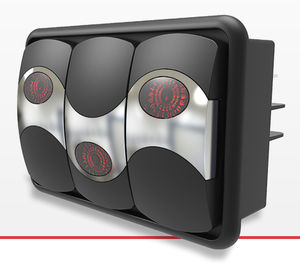

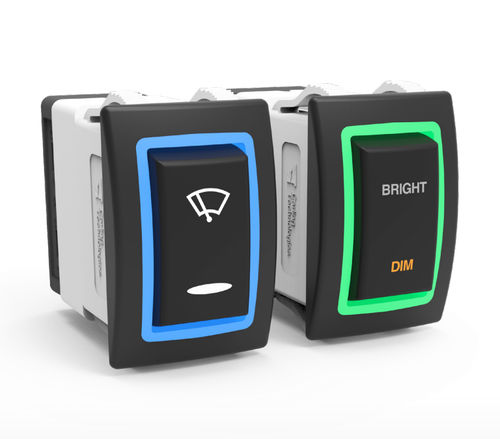

The HR-Series is a perimeter illuminated sealed rocker switch, featuring a stylish, low profile actuator that is available in either two or three positions. These two or three position rocker switches have a variety of dependent and independent illumination options; momentary and maintained circuits; and up to two customizable laser etched legends. The patented design supports the various illumination options and allows the switch to be rated up to 20 amps, eliminating the need for relays. HR-Series rocker switches are sealed to IP68 for above-panel components and endure a minimum of 200,000 cycles. Additionally, these low profile rocker switches fit the industry standard cutout. Specs Number of Poles - 1-2 Poles Ratings - 20A 12V Circuits - On-Off (On)-Off On-On On-(On) On-Off-On (On)-Off-(On) Dielectric Strength - Across open contacts: 500 V RMS AC for 1 minute From pole to pole (on multi pole variants) 500 V RMS AC for 1 min. Insulation Resistance - 50 Megaohms Base Material - Nylon, V-0 UL flammability rating Actuator Style - Stylish, low profile actuator with illuminated perimeter "halo" Illumination Options - Full Perimeter or Half Parimeter Illumination Variety of Independent and Dependent Circuits Variety of Illumination color choices Actuator Material - Polycarbonate, V-2 UL flammability rating, painted and laser marked Bracket/Bezel Material - Polycarbonate polyester blend, V-0 UL flammability rating Terminal Options - .110 Tab (QC) Mounting Method - Snap-in Mounting Hole Dimensions - .83" x 1.45" ; 21.08mm x 36.83mm Applications Marine On/Off-Highway Lawn Equipment Golf Carts Outdoor Construction Sinage
