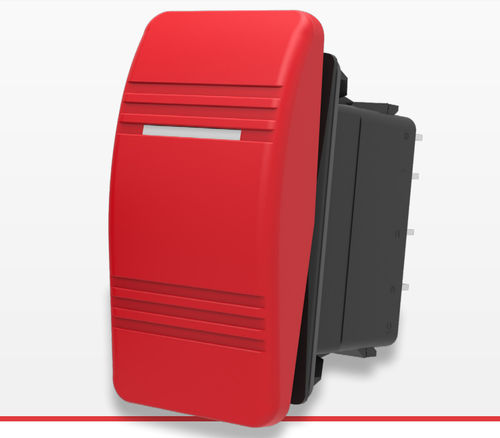

Marine switch V-SERIES CONTURA® II & III

electrical circuitwaterproofrocker

Certified to IP66/68, the V-Series Contura II & III rocker switches offer complete above-panel protection against dust, prolonged spray and submersion under pressure and are recognized to UL 1500 Ignition Protection for Marine products. These switches are vibration, shock, thermoshock, moisture and salt spray resistant with operating temperature ranging from -40°C to 85°C. Contura II & III styles feature square and bar lens options with convex actuators constructed of thermoplastic polycarbonate with hard nylon or “soft touch” elastomer overlay. The Contura II features 2 rows of raised bump finger traction on top and bottom of rocker. The Contura III features 3 rows of ridged finger traction on top and bottom of rocker. Both actuator options have flush style brackets. Specs Certifications UL CSA Number of Poles 1-2 poles Ratings 10A 250VAC 15A 125VAC 1/2HP 15A 125VAC 1/2HP 12(2)A 125VAC uT85 15A 125VAC 1/2HP 12(6)A 125VAC T85 10A 250VAC 15A 125VAC 1/2HP 125-250VAC 12(2)A 250VAC uT85 10A 250VAC 15A 125VAC 1/2HP 125-250VAC 12(6)A 250VAC T85 15A 24V 20A 18V 20A 12V 20A 6V 20A 3V Circuits On-Off (On)-Off On-(Off) On-On On-(On) On-Off-On On-Off-(On) (On)-Off-(On) Variety of Special Circuits available Dielectric Strength 2,000 V RMS opposite polarity 4,000 V RMS between live parts and operator accessible surface Insulation Resistance 50 megohms (minimum) Base Material Polyester Actuator Style Convex rocker with bumped finger traction Convex rocker with ridged finger traction Illuminated convex rocker with square lens Illuminated convex rocker with bar lens(es)
