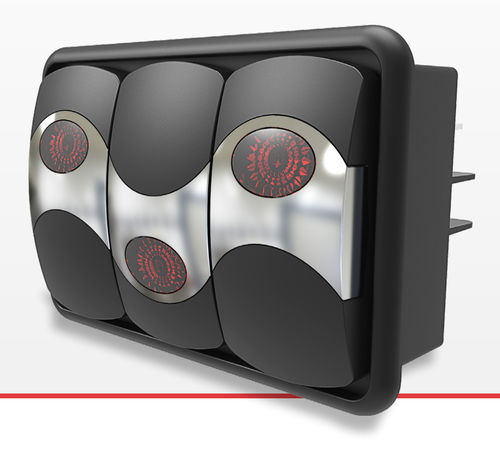

Marine switch V-SERIES CONTURA® VI

electrical circuitwaterproofrocker

Certified to IP66/68, the V-Series Contura VI rocker switches offer complete above-panel protection against dust, prolonged spray and submersion under pressure and are recognized to UL 1500 Ignition Protection for Marine products. These switches are vibration, shock, thermoshock, moisture and salt spray resistant with operating temperature ranging from -40°C to 85°C. Contura VI features oval and elliptical lens options. When used in a row, this actuator style creates a unique WAVE design, making them ideal for any boat panel. Replaceable WAVE inserts are available in black, white, bright chrome, satin chrome, bright nickel and satin nickel. Contura VI actuators have a flush style bracket. Specs Certifications UL, CSA Number of Poles 1-2 poles Ratings 10A 250VAC 15A 125 VAC ½ HP 15A 125VAC ½ HP 12(2)A 125VAC uT85 15A 125VAC ½ HP 12(6)A 125VAC T85 10A 250VAC 15A 125VAC ½ HP 125-250VAC 12(2)A 250VAC uT85 10A 250VAC 15A 125VAC ½ HP 125-250VAC 12(6)A 250VAC T85 15A 24V 20A 18V 20A 12V 20A 6V 20A 3V Circuits On-Off (On)-Off On-(Off) On-On On-(On) On-Off-On On-Off-(On) (On)-Off-(On) Variety of Special Circuits available Dielectric Strength 2,000V RMS opposite polarity 4,000V RMS between live parts and operator accessible surface Insulation Resistance 50 megohms (minimum) Base Material Polyester
