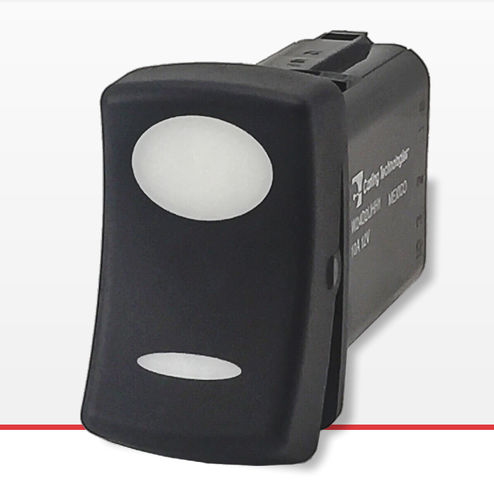

Marine switch W

electrical circuitsubmersiblerocker

The W-Series features complete IP68 protection, even below the panel, where the critical connection is made from your wiring harness. When used in conjunction with the integrated connector, the totally submersible W-Series provides a seal for up to ten individual wires, assuring compatibility with even the most complex circuitry. The W-Series also offers a wide variety of illumination options featuring dual level and multicolor LEDs, progressive and hazard warning circuits, ratings up to 10A 24V, choice of paddle, rocker, locking or laser etched actuators, hundreds of standard legend choices and the electrical performance and reliability that is the hallmark of Carling Technologies products. Number of Poles - 1-2 poles Ratings - 10A 24V 10A 12V 10A 6V 10A 3V Circuits - On-Off (On)-Off On-(Off) On-On On-(On) On-Off-On On-Off-(On) (On)-Off-(On) On-On-On Dielectric Strength - 1500V RMS opposite polarity Insulation Resistance - 50 megohms (minimum) Base Material - Nylon Actuator Style - Smooth curved rocker, with oval or bar lens styles for illuminated versions Actuator Material - Underlay/lens – Polycarbonate Hard overlay – Nylon Terminal Options - .110 QC Tabs Mounting Method - Snap-In Mounting Hole Dimensions - .83” x 1.45”; 21.08mm x 36..83mm Value Added - Custom colors and legends available Special circuits Mounting panels Optional lock-on terminal connector Hole plug
