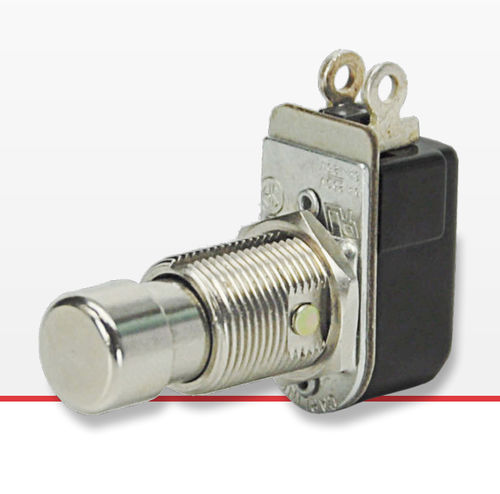

Marine switch P26

lightingpush-button

The P26-Series is a single pole switch, AC rated up to 6A 125VAC, 3A 277VAC. These single throw momentary action switches have a slow-make, slow-break contact mechanism. They require a medium actuation force (13 oz. typical) and its 277VAC rating makes it ideal for lighting applications. Metal cap option available. Specs Certifications - UL CSA Number of Poles - 1 pole Ratings - 3A 250VAC 6A 125VAC 3/4A 125V 4A 250VAC 8A 125VAC 1A 125V 3A 250VAC 6A 125VAC 3/4A 125V 5A 12V 3A 277VAC 6A 125VAC Circuits - Off-(On) (On)-Off Dielectric Strength - 1,000 V RMS (minimum) Insulation Resistance - 100 megohms (minimum) Base Material - Phenolic Actuator Style - Nylon Pushbutton Round Metal Pushbutton Concave Metal Pushbutton Actuator Material - Nylon or Brass Bushing Material - Brass/Nickel Plate Terminal Options - Solder Lugs Wire Leads Mounting Method - Bushing Mount Mounting Hole Dimensions - .500" diameter; 12.70mm diameter Value Added - Bushing accessories available Custom lead lengths available Custom strip lengths available Applications Intercoms Security System Electronic Signs Marine
