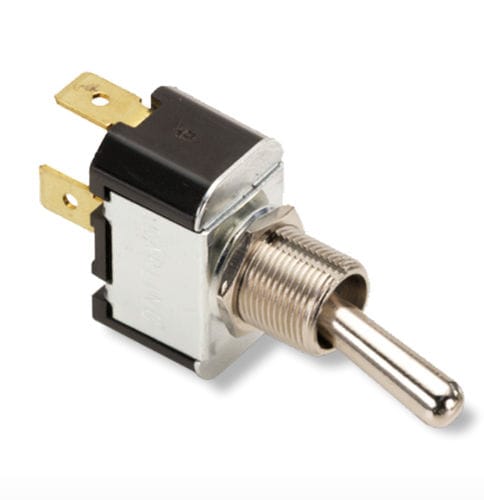

Marine switch F

electrical circuit

The F-Series single pole toggle switch features a slow-make, slow-break contact mechanism. This toggle switch series is AC rated and also suitable for low voltage DC rated applications. These toggle switches fit the industry standard .500 diameter mounting hole. The F-Series toggle switch series is available in a wide range of momentary and maintained single or double throw circuits, terminations, and bushing/toggle configurations. Specs Certifications - UL CSA Number of Poles - 1 pole Ratings - 10A 250VAC 15A 125VAC 3/4HP 120-240VAC 3A 250VAC 6A 125VAC 1/4HP 120-240VAC Circuits - On-Off (On)-Off On-(Off) On-On On-(On) On-Off-On On-Off-(On) (On)-Off-(On) Dielectric Strength - 1,000 V RMS (minimum) Insulation Resistance - 100 megohms (minimum) Base Material - Phenolic Actuator Style - Bat Toggles (variety of lengths) Ball Toggle Actuator Material - Brass/Nickel Plate Bushing Material - Brass/Nickel Plate Terminal Options - .250 QC Tabs Solder Lugs Wire Leads Screw Terminals Mounting Method - Bushing Mount Mounting Hole Dimensions - .500" diameter; 12.70mm diameter Value Added - Wire leads with connectors Special contact plating Additional ratings available Bushing accessories available Neoprene seals available Applications Marine Commercial Food Generators Industrial Automation Office Automation Medical Equipment
