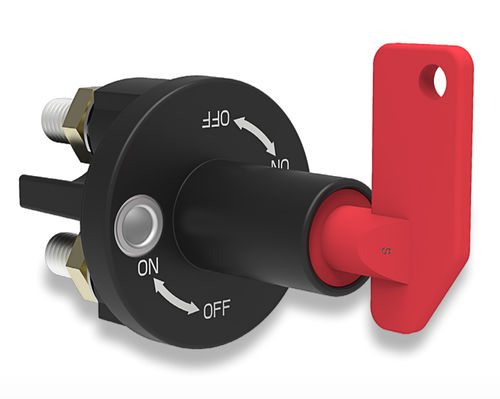

Single-pole battery switch BD1

Carling Technologies IP67 sealed BD1-Series battery disconnect switch is designed to minimize battery drain, ensure maintenance personnel safety. The optional removable key adds an extra layer of security to protect against vehicle theft. Specs Number of Poles - 1 Pole Ratings - 250A @ 12/24VDC Circuits - On-Off Dielectric Strength - 50HZ, 1200VAC Insulation Resistance - Minimum of 100 Megohms 1 min @ 500VDC. Base Material - Glass Filled Nylon Actuator Style - Removable or Non-Removable Key Actuator Material - Glass Filled Nylon Bracket Material - Glass Filled Nylon Terminal Options - M10 Stud, 19mm length M10 Stud, 27mm length Mounting Method - Screw Mount Applications On/Off-Highway Equipment Military Marine
