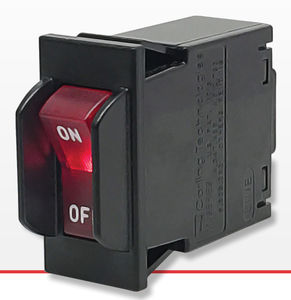

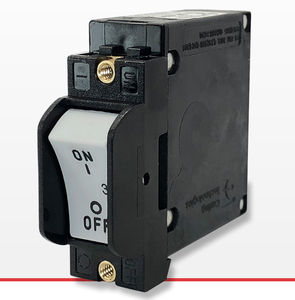

Boat circuit breaker A

hydraulic-magnetic

The A-Series are designed for precise operation across a broad range of general purpose and full amp load applications. The compact size can be complemented by either a Visi Rocker® or recessed paddle actuator when front panel operation requires a clean design. The sealed metal toggle configuration is ideal for harsh environment applications. Adding to the breaker’s safety features are options for the exclusive Rockerguard and/or push-to-reset bezels for rocker actuated configurations. This up to 50 amp breaker is configurable as one to six poles with handle actuators and one to three poles with sealed toggle, rocker or recessed paddle actuators. Agency Approvals: UL 489A, UL 1077, UL 1500, UL 508, CSA Accepted, TUV and VDE certified to IEC/EN 60934, CCC Amperage: Maximum 50 amps Voltage: Maximum 277VAC or 80VDC Maximum Interrupting Capacity: 7,500 amps Specs Agency Approvals - UL 489A, UL 1077, UL 1500, UL 508, CSA Accepted, TUV and VDE certified to IEC/EN 60934, CCC Number of Poles - 1-6 poles Handle actuator 1-3 poles Rocker actuator 1-3 poles Metal Toggle actuator Available Delays - Instant, Ultra-Short, Short, Medium, Long (motor loads), AC,DC, AC/DC; High Inrush - Short, Medium, Long Maximum Current and Voltage Ratings - 0.02-30A @ 277VAC, 80VDC 31.0-50A @ 125/250VAC, 80VDC 0.1 - 50A @ 80VDC (UL489A) Maximum Interrupting Capacity - 7,500 amps Auxiliary Switch Ratings - 10.1A @ 250VAC 0.1A @ 125VAC (gold contacts) 5A @ 30VDC 0.5A @ 80VDC 1.0A @ 65VDC Available Circuits - Series, Shunt, Relay, Switch Only, Series w/Remote Shutdown, Relay and Shunt Trip Dual Coil Actuator Style - Solid Color Curved Rocker (1 per unit) Flat Rocker (1 per unit)
