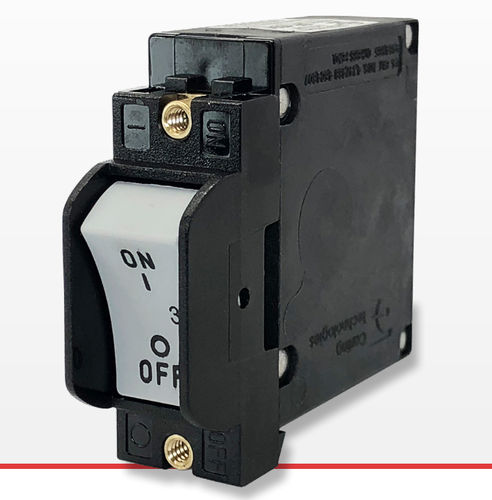

Boat circuit breaker B

hydraulic-magnetic

The B-Series are an optimal choice for both general purpose and full amp load applications. Extra insulation delivered by the tongue & groove half-shell construction provides the necessary spacing requirements for global regulatory safety approvals. Actuator options include handle, mid-trip handle, rocker and flat rocker. Rocker actuator options can be single color or a two color Visi Rocker®, both with push-to-reset options and choice of horizontal or vertical styling. Adding to the breaker’s versatility is a comprehensive choice of circuits, time delays, terminals and imprinting options. The B-Series is available as a one to six pole handle breaker or a one to three pole rocker breaker. Agency Approvals: UL 489, UL 489A, UL 1077, UL 1500, UL 508, cULus, CSA Accepted, TUV and VDE certified to IEC/EN 60934, CCC Amperage: Maximum 50 amps Voltage: Maximum 277VAC or 80VDC Maximum Interrupting Capacity: 7,500 amps Specs Agency Approvals - UL 489, UL 489A, UL 1077, UL 1500, UL 508, cULus, CSA Accepted, TUV and VDE certified to IEC/EN 60934, CCC Number of Poles - 1-6 poles Handle actuator 1-3 poles Rocker actuator Available Delays - Instant, Ultra-Short, Short, Medium, Long (motor loads), AC,DC, AC/DC; High Inrush - Short, Medium, Long Maximum Current and Voltage Ratings - 0.02-30A @ 277VAC, 80VDC 31.0-50A @ 125/250VAC 0.1-50A @ 80VDC (UL489A) 0.1-30A @ 120/120-240VAC (UL489) Maximum Interrupting Capacity - 7,500 amps Auxiliary Switch Ratings - 10.1A @ 250VAC 0.1A @ 125VAC (gold contacts) 5A @ 30VDC 0.5A @ 80VDC 1.0A @ 65VDC Available Circuits - Series, Shunt, Relay, Switch Only, Series w/Remote Shutdown, Relay and Shunt Trip Dual Coil
