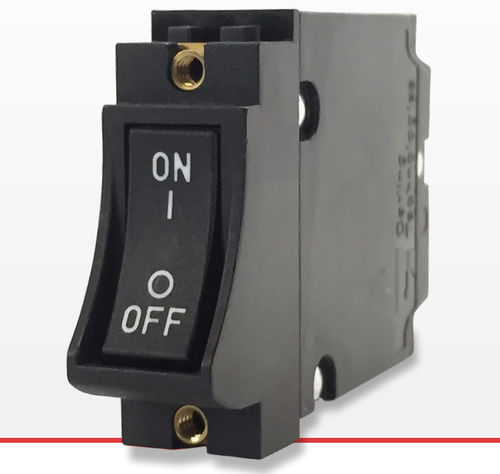

Boat circuit breaker H

hydraulic-magnetic

The cost-effective H-Series delivers dependable protection in a compact design. Offering a choice of terminal options, including PBC mounting, the H-Series breakers fit a broad range of general purpose and full amp load applications and are optimal for meeting the IEC spacing requirements of global markets. H-Series breakers feature a “trip fee” mechanism, which opens the contacts when a fault condition occurs, even if the handle is held in the ON position. Available with handle or rocker actuators, the H-Series are available in one to three pole configurations. Agency Approvals: UL 1077, CSA Accepted, TUV certified to IEC/EN 60934, CCC Amperage: Maximum 35 amps Voltage: Up to 250VAC or 65VDC and 80VDC for single pole Maximum Interrupting Capacity: 3,000 amps Specs Agency Approvals - UL 1077, CSA Accepted, TUV certified to IEC/EN 60934, CCC Number of Poles - 1-3 poles Available Delays - AC & DC Instantaneous, Ultra-Short, Short, Medium, Long AC & DC High Inrush - Short, Medium, Long Maximum Current and Voltage Ratings - 0.1-35A @ 65VDC 0.1-25A @ 80VDC 26-35A @ 80VDC (polarity sensitive) 0.1-35A @ 250VAC 0.1-35A @ 250VAC 80VDC Maximum Interrupting Capacity - 3,000 amps Auxiliary Switch Ratings - 1.0A @ 65VDC 0.5A @ 80VDC 0.1A @ 125VAC (gold contacts)
