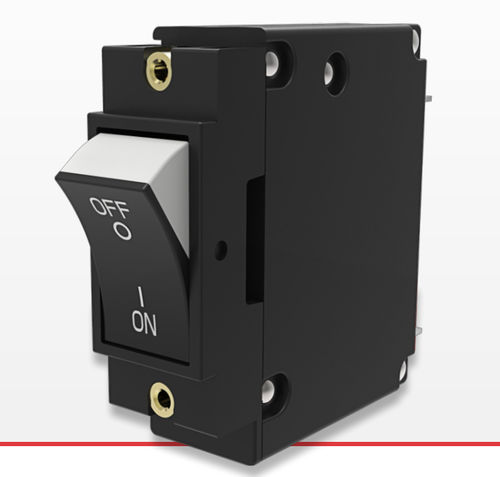

Boat circuit breaker J

hydraulic-magnetic

The J-Series delivers an up to 20 amp circuit breaker with a 10,000 amp maximum interrupting capacity in a compact size. While measuring only 2.13 inches [54.10mm] in depth and 2.25 inches [57.15mm] in height, the performance capabilities of this low profile circuit breaker make it ideally suited for high power density applications. Performance is highlighted by an enhanced arc chamber where arc splitter retainers, combined with integrated pressurizing walls, facilitate cooling through the use of magnetically induced splitter plates. The result is a breaker that ensures rapid tripping and cooling to prevent serious equipment damage and fire. This up to 20 amp circuit breaker is configurable as a one to three pole breaker with handle, flat or curved rocker style actuators and offers multiple terminal options. Agency Approvals: UL 489, cULus, TUV certified to IEC/EN 60947-2 Amperage: Maximum 20 amps Voltage: Up to 240VAC Maximum Interrupting Capacity: 10,000 amps; 5,000 amps TUV Specs Agency Approvals - UL 489, cULus, TUV certified to IEC/EN 60947-2, CCC Number of Poles 1-3 Poles Available Delays Instantaneous, Ultra Short, Short, Medium, Long, Short Hi-Inrush, Medium Hi-Inrush, Long Hi-Inrush Maximum Current and Voltage Ratings 1-20A, up to 240V Maximum Interrupting Capacity 10,000 amps; 5,000 amps TUV Available Circuits Series Trip Actuator Style Two Color Flat Visi-Rocker Single Color Flat Visi-Rocker Push-to-Reset Two Color Flat Visi-Rocker Push-to-Reset Single Color Flat Visi-Rocker Two Color Curved Visi-Rocker Single Color Curved Visi-Rocker Terminal Options .250 QC Tabs 8-32 Screw (options: Bus Type; with upturned lugs; 30 degree bend; Back Connect)
