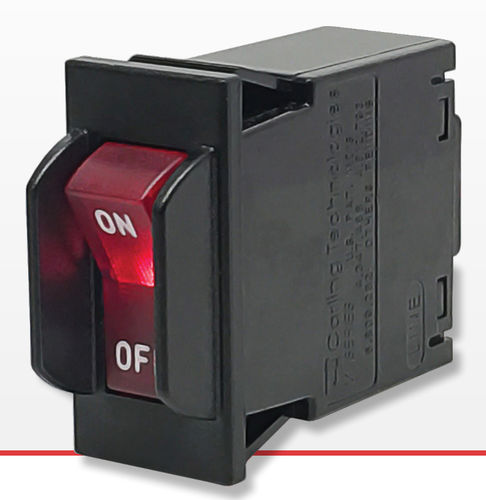

Boat circuit breaker M

hydraulic-magnetic

The M-Series miniature circuit breakers offer high performance in a compact design, complete with front panel snap-in or bushing mounting as well as a vertically mounted parallel pole configuration. These miniature circuit breakers offer several agency approvals and are available with multiple design choices to meet the needs of almost any application, including 16 different time delays, 5 terminal styles, a variety of panel hardware, multiple color options and legend imprinting. The M-Series also features a choice of actuators that include flat or angled rockers with or without illumination, a two color Visi Rocker®, paddle, baton, push-pull or push-to-reset. Our exclusive Rockerguard protects against inadvertent actuation and wiping contacts assure long-term reliability of these miniature circuit breakers. The M-Series is available as a one to two or parallel pole breaker. Agency Approvals: UL 489A, UL 1077, CSA Accepted, TUV & VDE certified to IEC/EN 60934, CCC Amperage: Maximum 30 amps or 50 amps for UL 489A parallel pole Voltage: Up to 250VAC or 80VDC Maximum Interrupting Capacity: 1,000 amps; 600 amps TUV; 500 amps VDE Specs Agency Approvals - UL 489A, UL 1077, CSA Accepted, TUV & VDE certified to IEC/EN 60934, CCC Number of Poles - 1 & 2 poles Available Delays - Instant, Short, Medium - AC/DC, Hi-Inrush Maximum Current and Voltage Ratings - 0.02-15FLA, 32VDC, 125VAC, 1 pole 15.1-25GPA, 32VDC, 125VAC, 1-pole 0.02-15FLA, 65VDC, 250VAC, 2-pole 15.1-25GPA, 65VDC, 250VAC, 2-pole 0.02-12FLA, 250VAC, 1-pole 0.02-7.5GPA, 50VDC, 1-pole 0.02-30GPA, 65VDC, 80VDC, 1 pole Maximum Interrupting Capacity - 1,000 amps; 600 amps TUV; 500 amps VDE
