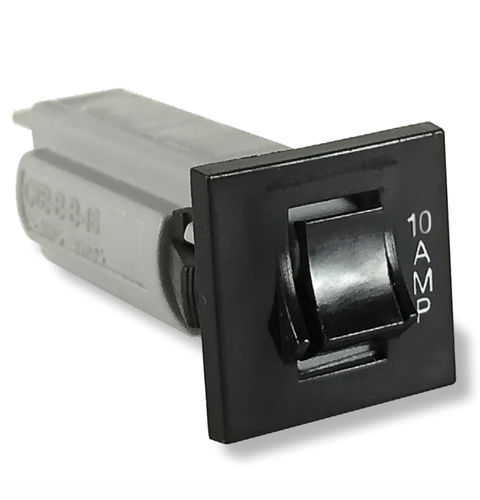

Boat circuit breaker CTB

thermal

The CTB-Series is a single pole, rocker actuated thermal circuit breaker offering simple snap-in mounting in a compact design to accommodate panels ranging in thickness from .032 inches up to .110 inches. Precision engineering allows this breaker to operate with fewer moving parts, increasing durability while providing cost-effective and reliable circuit protection with high resistance against shock and vibration. Fitted to work with a round panel cut-out, the CTB-Series utilizes .250 tab terminals and is ideally suited for applications such as household appliances, power strip and supplies, on/off highway, marine, as well as audio-visual, medical and exercise equipment. This series is RoHS compliant and resets with a push. Agency Approvals: UL 1077, cUL, VDE, CE Amperage: Maximum 16 amps Voltage: 125VAC, 250VAC, 125/250VAC, 50VDC Amps Interrupting Capacity: 1,000 amps Specs Agency Approvals - UL, cUL, VDE, CE Number of Poles - 1 pole Maximum Current and Voltage Ratings - 3 - 16 amps @ 125-250VAC, 50VDC Amps Interrupting Capacity - 1,000 amps Available Circuits - Series Trip Actuator Style - Rocker actuator Terminal Options - .250 Quick Connect Tabs Mounting Method - Front Panel Snap-in Applications Household Appliances Power Strips and Supplies On/Off-Highway Marine Audio-Visual Equipment Medical Equipment Exercise Equipment
