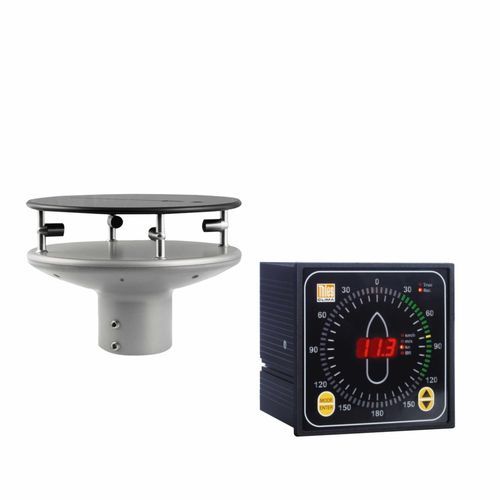

Digital anemometer system Ultrasonic 2D compact

Combined mast unit Heatable 20m connector cable 230VAC/24VDC LED Data display NMEA 183 data output Illuminated Description The Ultrasonic Anemometer compact serves for the 2-dimensional acquisition of the horizontal components of the wind velocity, the wind direction and the acoustic-virtual temperature. Heated components: • base plate • cover plate • sensor receiving sockets • ultrasonic transducers The following measurement data are available: • Orthogonal wind velocity vectors (X- and Y-distance) • Scalar / vectorial wind velocity wind direction • Acoustic-virtual temperature The instrument is especially suitable for the use in the fields of: • Regenerative power generation, wind power plants • Industry automation • Wind warning devices, building construction and building security • Traffic engineering, aviation and navigation • Meteorology • Climatology The measurement principle allows, compared to the classic anemometers, an inertia-free measurement of running variable dimensions with highest precision and accuracy. The data can be served • analogically*, as standard signal or / and digitally in • ASCII THIES- Format or • binary as MODBUS RTU protocol If necessary, the instrument is automatically heated at critical ambient temperatures. Thus, the risk of malfunction caused by icing is minimized. The model no. 4 3875 2x xxx is equipped with an additional baro transmitter. * only in HD (half duplex) operation no output of virtual temperature
