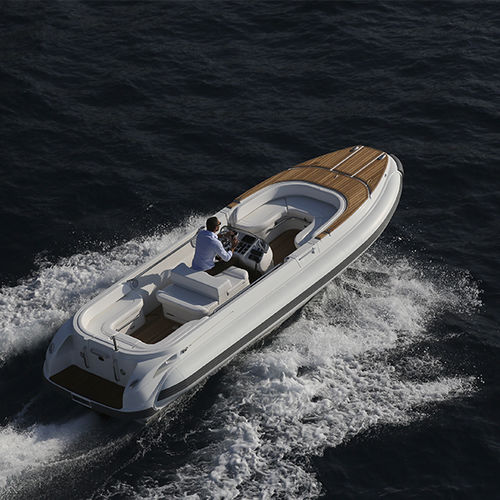

Hydro-jet inflatable boat JT 23

dieselrigidcenter console

Technical Characteristics Length o.a. 7,10 m Beam max. 2,68 m Height max. for storage 1,24 m (with folded console) Passengers (C.E. Directive) No. 14 Design category (C.E. Directive) C Engine 250 mHP Yanmar diesel Propulsion system Castoldi waterjet unit type Turbodrive 284 H.C.T. with hydraulic clutch, movable grid and Clear-Duct unclogging system Boat weight 1.760 kg (empty with oil and water in the engine and oil in the waterjet) Fuel capacity 200 l Carrying capacity 1.400 kg Top speed 37 knots light loaded – 34 knots full loaded Construction: Hull: Single skin structure, hand laid Kevlar and vinylester resin Deck, console: Sandwich structure, hand laid glass and isoftalic polyester resin with nidaplast core Stringer System: Sandwich structure, hand laid Kevlar and vinylester resin with polyurethane closed cell foam core Inflatable tubes: Hypalon/Neoprene coated polyester fabric 1670 Dtex No. 6 separate airtight compartments
