Diesel generator set C7.1
for yachts60 Hz50 Hz

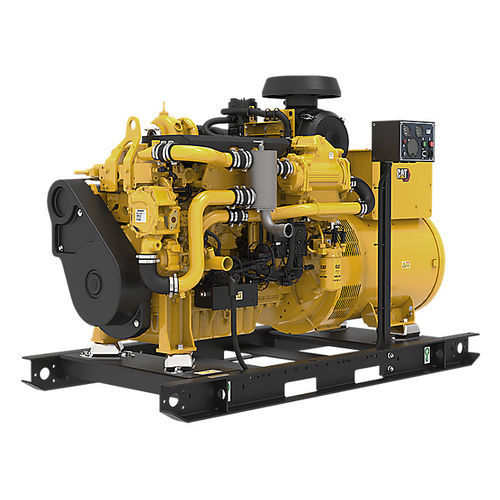

Diesel generator set - C7.1 - Caterpillar Marine Power Systems - for yachts / 60 Hz / 50 Hz

Diesel generator set - C7.1 - Caterpillar Marine Power Systems - for yachts / 60 Hz / 50 Hz - image - 2

Add to favorites

Compare this product

Characteristics

Motor type

diesel

Application domain

for yachts

Frequency

50 Hz, 60 Hz

Pollution control standard

Tier 3, IMO 2

Output power

Max.: 200 kW
(271.9 hp)

Min.: 100 kW
(136 hp)

Power in kVA

Max.: 250 kVA
(339.91 hp)

Min.: 125 kVA
(169.95 hp)

Rotational speed

1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)

Displacement

7 l
(2 gal)

Number of cylinders

6 unit

Length

Max.: 2,116 mm
(83.3 in)

Min.: 1,935 mm
(76.2 in)

Width

956 mm
(37.6 in)

Height

1,263 mm
(49.7 in)

Net weight

Max.: 1,840 kg
(4,057 lb)

Min.: 1,652 kg
(3,642 lb)

Description

Gear Driven Water Pumps Automatic Valve Adjustment Variety of Different Cooling Systems Multiple Control Panel Options Engine Mounted Filtration Independent Shutdown Sensors and Controller Generator Paralleling Droop Kit for Load Sharing Streamlined Options for Easy Installation and Maintenance Utilizes SCR technology enabling IMO III emissions compliance (optional) STANDARD EQUIPMENT Common Rail Fuel System Mounted Air Cleaner Integral Plate Type Oil Cooler Isolated Sump Anti-vibration Mounts Gear Driven Sea Water Pump Gear Driven Jacket Water Pump Safety Shutdowns Water Cooled Exhaust Manifold Watercooled Turbocharger OPTIONAL ATTACHMENTS Marine Classification Society (MCS) Approval Generator Space Heater Engine Jacket Water Heater Duplex Oil Filters Duplex Fuel Filters Double Wall High Pressure Fuel Lines Additional Starter Motor Fuel Cooler (Radiator cooled only) Charging Alternator PTO Drive Service Parts Kit Generator Droop Kit Glow Plugs to Aid Cold Weather Starting
