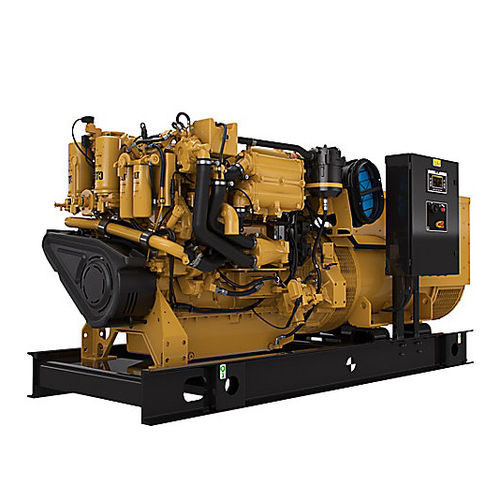

Diesel generator set C18 (SRMP)
for yachts60 Hz50 Hz

Diesel generator set - C18 (SRMP) - Caterpillar Marine Power Systems - for yachts / 60 Hz / 50 Hz

Add to favorites

Compare this product

Characteristics

Motor type

diesel

Application domain

for yachts

Frequency

50 Hz, 60 Hz

Protection class

IP23, IP44

Pollution control standard

IMO 2, Tier 3

Output power

Min.: 260 kW
(353.5 hp)

Max.: 565 kW
(768.2 hp)

Power in kVA

Min.: 325 kVA
(441.88 hp)

Max.: 706 kVA
(959.89 hp)

Rotational speed

1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)

Number of cylinders

6 unit

Length

4,741 mm
(186.7 in)

Width

1,699 mm
(66.9 in)

Height

2,408 mm
(94.8 in)

Net weight

6,076 kg
(13,395 lb)

Description

The C18 SRMP is the latest generator and brings commonality with our petroleum products as well as interfacing improvements. We have also taken this opportunity to add new price list options. All engine ratings and emissions certifications are the same, however we have been able to increase the power output of the generator for 12 of the 14 ratings. The primary advantage of the separate circuit aftercooling system (SCAC) is that no sea water circulates through the aftercooler AIR INLET SYSTEM Separate circuit after-cooled (SCAC) Heavy-duty inlet air filter COOLING SYSTEM SCAC pump, gear driven, for HEX cooled engines only Jacket water pump, gear driven SCAC and JW shunt tanks for maintaining proper pump inlet pressures EXHAUST SYSTEM Water-cooled exhaust manifold & turbocharger Round flanged exhaust outlet FUEL SYSTEM Hybrid fuel lines MEUI™ fuel system Fuel filter, front service Fuel transfer and priming pumps LUBE SYSTEM Center sump oil pan, deep Front and top service oil filler locations Front service dipstick MOUNTING SYSTEM Vibration Isolators Formed C-channel rails CONTROL SYSTEM Electronic fuel/air ratio control SRMP permanent magnet 12-lead generator Digital voltage regulator Class H insulation, Class F temperature rise, IP23 protection
