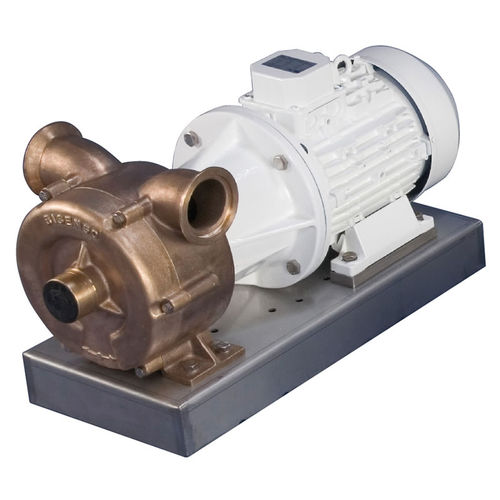

Boat pump 020 transferbilgefire fighting system
Add to favorites
Compare this product
Characteristics
- Application domain
- for boats
- Applications
- transfer, bilge, fire fighting system
- Fluid
- water, oil, fuel
- Operation
- electric
- Voltage
- 24 V, 12 V, 400 V, 230 V
- Protection level
- IP55
- Other characteristics
- self-priming
- Flow rate
Min.: 28 l/min
(7.4 us gal/min)Max.: 500 l/min
(132.09 us gal/min)- Power consumption
Min.: 2.2 A
Max.: 36 A
- Pressure
6 bar
(87 psi)- Weight
5.7 kg, 9.6 kg, 13.5 kg, 21 kg, 36 kg
(12.6 lb, 21.2 lb, 29.8 lb, 46.3 lb, 79.4 lb)
Description
Self-priming electric pumps made in bronze with side liquid ring widely used in the nautical sector to empty bilges, fire-fighting and transfer liquids such as: fresh water, sea water, diesel-oil etc.
CONSTRUCTION FEATURES
Pump body: BRONZE
Impeller: BRONZE
Pipe fittings: BRONZE
Shaft: AISI 316 Stainless steel
Mechanical seal: ceramics-graphite-NBR (special corrosion proof)
MOTOR
Direct Current:
Wound field electric motor 12/24V, Protection IP23, Insulation Class F, Continuous Duty (S1).
MP series: permanent magnet motor 12/24V d.c. for bi-directional operations, Protection IP 23÷44, Insulation Class F, Continuous Duty (S1).
Alternate Current:
Induction electric motor, 230V single-phase (M) / 230÷400V three-phase (T), 50Hz, Protection IP55, Insulation Class F, Continuous Duty (S1).
SCOPE
Liquid free of solid impurities
Temperature range of the liquid: from +0 to +70 °C
Max. suction depth: 6 m (4m for 020 and 020MP models)
Static pressure inside the pump body: 6 bar max
