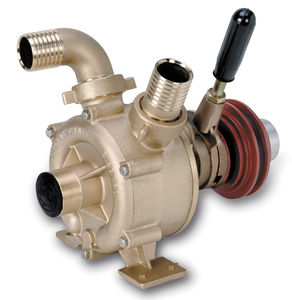

Boat pump SPECIAL transferwateroil
Add to favorites
Compare this product
Characteristics
- Application domain
- for boats
- Applications
- transfer
- Fluid
- water, oil, fuel
- Operation
- belt-driven
- Other characteristics
- self-priming
- Flow rate
30 l/min, 60 l/min
(7.93 us gal/min, 15.85 us gal/min)- Pressure
6 bar
(87 psi)- Weight
2 kg, 2.8 kg
(4.4 lb, 6.2 lb)
Description
Bidirectional self-priming pumps with side liquid ring widely used in the nautical sector to empty bilges, for fire-fighting equipment, washing of chains and transfer of liquids such as: fresh water, sea water, diesel-oil etc.
Available with pulley or bare shaft (SPECIAL Type), or with electro-magnetic clutch (SPECIAL FM Type).
CONSTRUCTION FEATURES
Pump body: BRONZE
Impeller: BRONZE
Pipe fittings: BRONZE
Shaft : AISI 316 stainless steel
Reversible mechanical seal: CERAMICS-GRAPHITE–NBR
SCOPE
Liquid free of solid impurities
Temperature range of the liquid: from +0 to +70 °C.
Max. suction depth: 6 m.
ACCESSORIES ON REQUEST
Abrasion-proof mechanical seals for high temperature made in VIDIA-VITON (max. 150°C)
