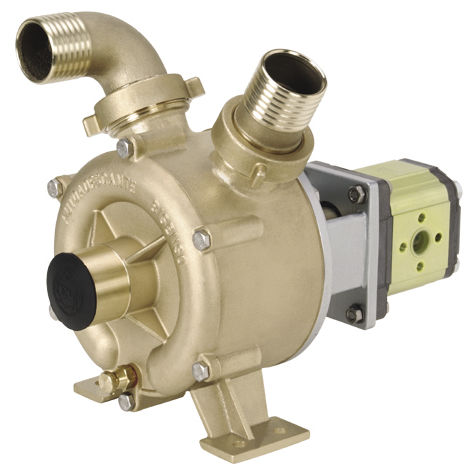

Boat pump MID 040 transferwateroil
Add to favorites
Compare this product
Characteristics
- Application domain
- for boats
- Applications
- transfer
- Fluid
- water, oil, fuel
- Operation
- hydraulic
- Other characteristics
- self-priming
- Flow rate
120 l/min, 230 l/min
(31.7 us gal/min, 60.76 us gal/min)- Pressure
6 bar
(87 psi)- Weight
7.2 kg, 11.4 kg
(15.9 lb, 25.1 lb)
Description
Bidirectional self-priming pumps with side liquid ring, widely used in the nautical sector to empty bilges, fire-fighting, washing of decks and chains and transfer liquids such as: fresh water, sea water, gas-oil etc.
Available with flange or complete with hydraulic motor.
CONSTRUCTION FEATURES
Pump body: BRONZE
Impeller: BRONZE
Pipe fittings: BRONZE
Shaft : AISI 316 stainless steel
Reversible mechanical seal: CERAMICS-GRAPHITE–NBR
SCOPE
Liquid free of solid impurities
Temperature range of the liquid: from +0 to +70 °C.
Max. suction depth: 6 m.
ACCESSORIES ON REQUEST
Abrasion-proof mechanical seals for high temperature made in VIDIA-VITON (max. 150°C)
Catalogs
MID
2 Pages
