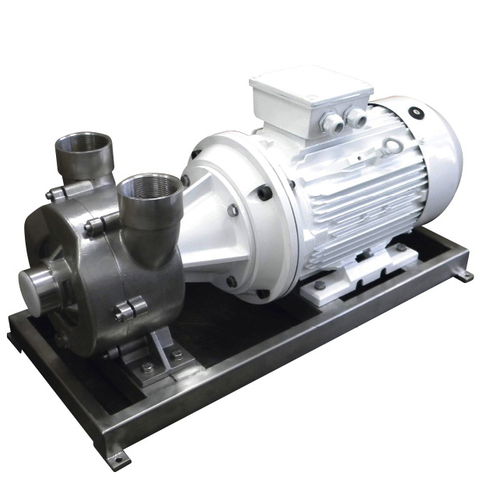

Yacht pump 020-inox

transferbilgefire fighting system

Self-priming electric pumps made in SS AISI 316 with side liquid ring, widely used in the nautical, and industrial sectors to empty bilges, fire-fighting and to transfer liquids such as: fresh water, sea water, diesel-oil, and chemical liquids compatible with AISI 316 stainless steel. CONSTRUCTION FEATURES Pump body: AISI 316 Stainless steel Impeller: AISI 316 Stainless steel Shaft: AISI 316 Stainless steel Breech: AISI 316 Stainless steel Reversible mechanical seal : ceramics-graphite-NBR. Pipe fittings: supplied on request in Stainless steel or Nylon (Ref. Accessories on request). MOTOR Direct Current: Wound field electric motor 12/24V, Protection IP23, Insulation Class F, Continuous Duty (S1). Alternate Current: Induction electric motor, 230V single-phase (M) / 230÷400V / 400÷690V three-phase (T), 50Hz, Protection IP55, Insulation Class F, Continuous Duty (S1). SCOPE Liquid free of solid impurities Temperature range of the liquid: from +0 to +70 °C. Max. suction depth: 6 m. (4 m. for model 020-inox) Static pressure inside the pump body: 6 bar max. ACCESSORIES ON REQUEST Pipe fittings made in Stainless Steel Pipe fittings made in Nylon High Temperature mechanical seal (max. 150° C) made in widia/viton/SIC
