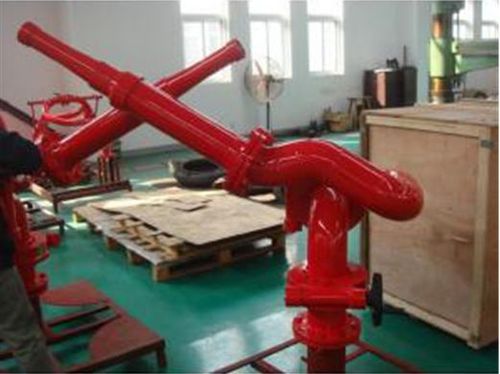

Remote-controlled fire monitor
Add to favorites
Compare this product
Characteristics
- Options
- remote-controlled
Description
Type : diesel engine driven
Capacity : 330L/S fire monitor ; 1200m³/h fire pump
Range : 150M
Head : 55M
Technical Specifications
1. Fire monitor
Qty: 1unit
Type : SS200EL
Columnar water nozzle
Medium: seawater /water
Pressure : 1.6MPa
Work pressure : 1.2MPa
Capacity : 330L/S
Range : ≥120m
Inlet interface : DN200 PN16
Operation mode: Electronic control(with Emergency hand wheel)Electricity AC380V 3Ph 50Hz
Vertical : +165°/-165°(it can be adjusted as request)
Elevation: -10°/+70°(it can be adjusted as request)
Body : stainless steel
Pipe : stainless steel
Impeller : copper alloy
Shaft : stainless steel
Sealing : NBR
Color : red (RAL3000)
