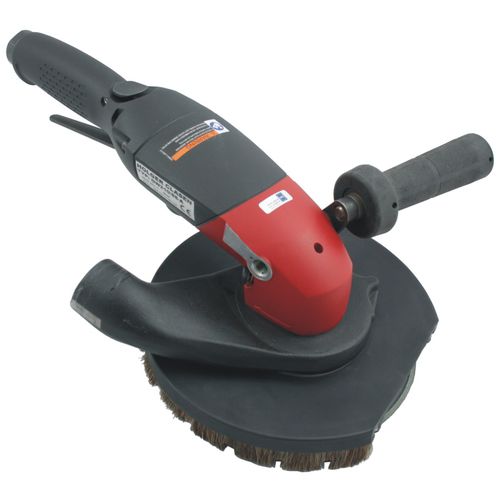

Shipyard grinder GW 210/85-A

pneumaticright angle

The pneumatic angle grinder GW210/85-A with dust extraction is designed for grinding with high material removal, the uneven dust is discharged into an external dust extraction. The effective suction hood of open design provides a dust-free working environment and is suitable for grinding accessories with Ø 180 mm. This angle grinder with suction is very popular for machining GRP and CRP, e.g. in rotor blade production. Benefits Air powered angle grinder with efficient dust extraction right on site. Precise handling thanks to the tool‘s small housing diameter and low weight. Spindle lock facilitates quick disc change without the need for special tools. Centrifugal governor provides consistent speed under load. No tiring due to low-vibration motor. Long service life due to sturdy gear and bearings. Protective cover can be adjusted steplessly through 360°. The flattened angle head guarantees access to work spaces that are difficult to reach. Technical specifications Power: - 2100 W Speed: - 8500 min-1 Plate Ø: - 178 mm Wheel Ø: - 180 mm Chuck: - 5/8" - 11 UNC Equipment: - Spindle lock Start: - Valve lever down Handling: - Two-hand operation Dust extraction: - external dust extraction Connection dust extraction: - Ø 38 mm Weight: - 2.7 kg Inlet air connection: - G 3/8" Recommended hose Ø: - 13 mm Air consumption: - 17 / 36 l/s Current: - Pneumatic P_Max. Betriebsdruck: - 6.3 bar
