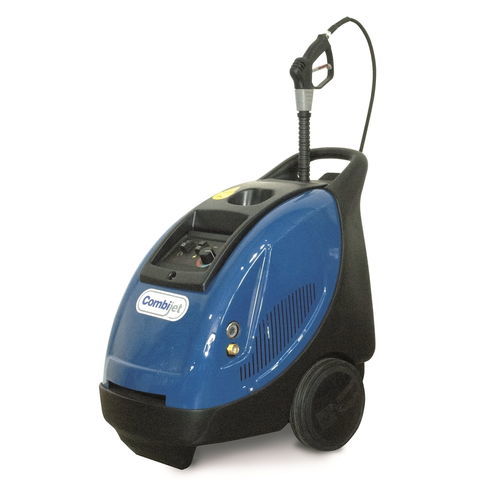

Shipyard high-pressure cleaner JE30-2016

mobileelectric drivefor hull cleaning

The machine comes equipped with an electric 4-pole motor with thermal protection and water cooling capability; three ceramic coated pistons; a brass linear pump head with built-in bypass valve; an auxiliary motor for burner air cooling and a mechanical two-way fuel pump; an integrated elastic joint for efficient pump coupling; a 10 meter ultra-high pressure hose; a pressure accumulator for hose and gun vibrations prevention; and a built-in water tank which would assist in cases where water supply is insufficient in terms of pressure or flow, and into which chemicals and softeners can be placed for direct use with the output water. The JE30-2015 also has a lance with a straight jet nozzle (rotating nozzles can also be used for tougher jobs); suction and delivery S/S valves; a vertical burner with high thermal efficiency; a temperature regulation gauge with a high sensitivity stainless steel sensor; a detergent built-in tank for indirect suction; and a trigger operated dump gun. Operating Pressure/Mx: 30-200 Bar Operating Pressure/Max.: 435-2900 PSI Flow Rate: 7.5-15 lpm / 1.98 – 3.96 GPM Power/Voltage: 7300 W / 400 V 50Hz 3 ph RPM: 1450 Diesel Tank: 18 l/ 4.8 gal/h Detergent Tank: 3l/0.8 gal/h Max. Temperature Inlet / Outlet: 40° C / 140° C Fuel Consumption: 6.6 l/h (1.75 gal/h Heat Output: 74 kw Machine Dimensions / Weight: 94x65x90 cm / 130 Kg / 284 lbs Electrical Motor: 4-pole with thermal protection and water cooling Three ceramic pistons, brass linear pump head with built-in bypass valve Integrated elastic joint, for best pump coupling Low voltage and delayed Total Stop Suction and delivery S/S valves Vertical burner with high thermal efficiency
