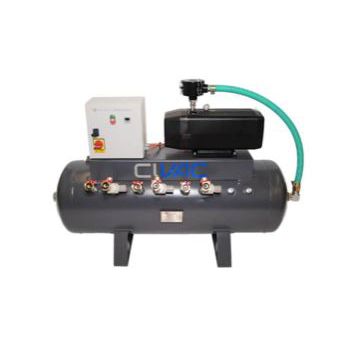

RTM vacuum system Dry Vane Type Vacuum System

for vacuum infusion

Simple, robust and efficient dry-running vacuum pumps ideally suited to VRTM processes. This type of vacuum pump is not adversely affected by air-admittance during the moulding process (‘rough’ vacuum) unlike oil-lubricated pumps which, despite achieving higher levels of vacuum, can vent oil vapour if used in this type of application. Available as stand-alone pumps or in a range of configurations. High-output oil-free rotary vane vacuum pumps Range of rated outputs with maximum vacuum level of 100-150mbar absolute Fitted with Replaceable cartridge-filter to prevent dust and fibre entering the vacuum pump Running time approx 4000-8000 hours between service intervals Available configured to suit single or multi-mould operations
