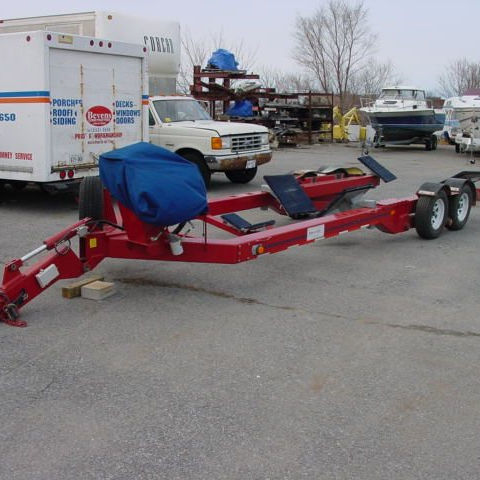

Road trailer YH-3

for boatshydraulic

Capacity (size) Powerboats 26' LOA 7" x 7" x .188" HSS steel tube Fixed width frame (non-expanding) with 55" clear inside width Hydraulic tongue with pintle ring Hydraulic lift - wheel and tongue lift with frame heights to 48" Hydraulic Power: 5.5 HP Honda gasoline engine Pilot operated safety lock-valves on main frame lift Manually operated rear keel support strap 4 adjustable powerboat pads O-ring boss and JIC hydraulic fittings Zinc coated steel hose ends and fittings High strength hydraulic cylinder shafts Stainless steel hardware (nuts/bolts/pins) Nitrogen ride suspension MTO/DOT approved lighting package LED lights with marine grade wiring Electric brakes with breakaway switch Tires: 225/75R15 radials (includes spare tire and carrier) Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer Polyurethane paint - 2 coats of Conolift Red PPG commecial performance paint 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear Optional Equipment Custom Colour choice - 189 colors to choose from Black or white decal (company name & telephone number) on both sides of unit Electric / hydraulic brakes Air-ride suspension system with 12 volt compressor and tank Hydraulically operated rear keel support strap Stainless steel hose ends & fittings package (includes SS cylinder shafts) Wireless remote control 3 Functions Hot dip galvanized frame and hubs (in lieu of standard painting process)
