Handling trailer SL-20
for boatshydraulicself-propelled

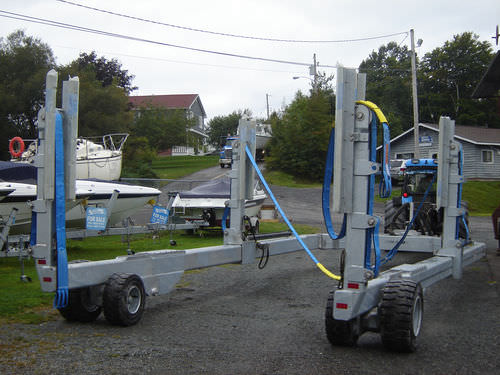

Handling trailer - SL-20 - Conolift - for boats / hydraulic / self-propelled
Handling trailer - SL-20 - Conolift - for boats / hydraulic / self-propelled
Handling trailer - SL-20 - Conolift - for boats / hydraulic / self-propelled - image - 2
Handling trailer - SL-20 - Conolift - for boats / hydraulic / self-propelled - image - 3
Handling trailer - SL-20 - Conolift - for boats / hydraulic / self-propelled - image - 4
Handling trailer - SL-20 - Conolift - for boats / hydraulic / self-propelled - image - 5
Handling trailer - SL-20 - Conolift - for boats / hydraulic / self-propelled - image - 6
Add to favorites
Compare this product


Characteristics

Use
handling
Applications
for boats
Other characteristics
hydraulic, self-propelled
Payload

40,000 lb
(18,143.69 kg)

Overall length

46'00" , 48'00"
(14 m, 14.6 m)

Lifting height

36 in, 58 in

Description

Hydraulic expanding width frame expands from 10' to 14'6" inside of slings expands from 89" to 143" inside of tires Hydraulic tongue with 5' extending(manual) pintle ring Hydraulic lift: wheel and tongue lift with frame heights to 58" Sling lift of an additional 36" of lift Hydraulic Power 9 HP Honda with electric start and 2 stage pump 10 gallon hydraulic reservoir Wireless radio remote control Pilot operated safety lock-valves on all lift functions 4 hydraulic sling posts with 36" of lift each Front sling has hydraulic adjustment fore and aft 10' to 16' on centers 2 center-disconnect slings with hull protector pads Tires: 28" premium solid wide-trac Titan tires (outside) 22" premium solid wide-trac Titan tires (inside) Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer Polyurethane paint - 2 coats of Conolift Red PPG commercial performance paint 2 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear Optional Equipment Custom colour choice - 189 colors to choose from Hitch with 5' hydraulic extending pintle ring Self-propelled power unit Salt water package - consisting of : Hot-dipped galvanized frame and components Stainless steel hose ends and fittings, hydraulic cylinder shafts Conolift reserves the right to change specifications or substitute components as required in an effort to supply a better product in an ever changing marketplace.

Catalogs

SL-20
SL-20
1 Pages
