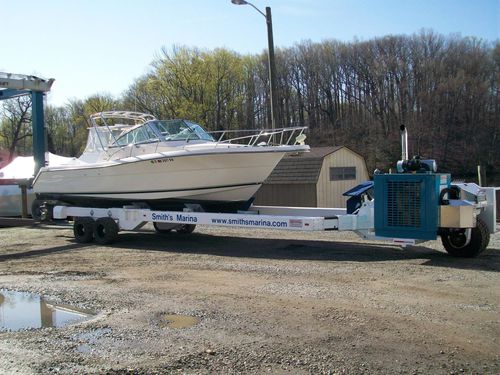

Handling trailer SP-25

for boatshydraulicself-propelled

Powerboats to 46′ LOA Cradled sailboats to 48′ LOA Capacity (weight) – 50,000 lbs 10″ x 10″ x .500″ HSS steel tube frame Integral hydraulic front-end power unit Power: 85 HP CAT Diesel 90 degree steering Full hydrostatic drive with dynamic braking (multi wet-disk parking brake) Variable speed to 9 MPH Single lever joy-stick control Full engine instrumentation Hydraulic expanding width frame (expands from 68″ to 98″ inside) Hydraulic lift – wheel and tongue lift with frame heights to 55″ Pilot operated safety lock-valves on main frame lift Hydraulically operated rear keel support strap 10 adjustable powerboat pads; 3 telescopic cradle bars with fixtures O-ring boss and JIC hydraulic fittings Zinc coated steel hose ends and fittings High strength hydraulic cylinder shafts Stainless steel hardware package (nuts/bolts/pins) Walking beam suspension Tires: Front – 31″ diameter lug-style drive tires / Rear – 28″ premium wide-trac solid Titan tires Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer Polyurethane paint – 2 coats of Conolift Red PPG commercial performance paint 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear Optional Equipment Custom colour choice – 189 colors to choose from Wireless remote control L cradle arms for more efficient cradle moving – Set of 6 Stainless steel hose ends & fittings package Hot dip galvanized frame and hubs Hydraulic 4-arm package for handling non-cradled sail boats Rear wheel drive assist
