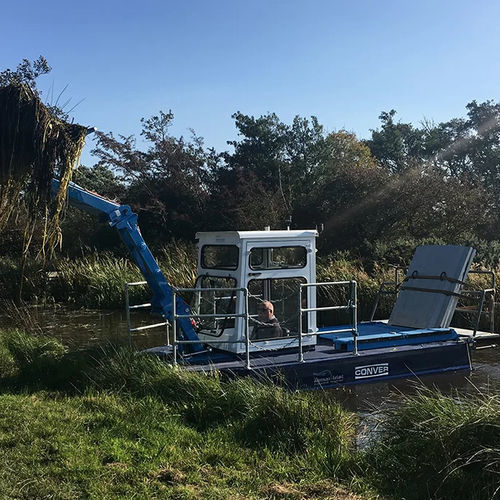

Mowing boat C485-XL

The C485-XL is identical to the C485, with the exception of the dimensions. Its larger hull (4,45 m length and 2,34 m width) ensures even more stability and lifting capacity. The hull is equipped with two watertight bulkheads and has a fully lockable deck. The implement carrier on the nose is standard for universal quick coupling attachment of many implements such as a push rake, T-cutter, collection bucket, mowing bucket and dredging unit. The C485-XL has 2 free hydraulic cylinder functions at the front (15 l / min at 165 bar) and 1 implement function (20 l / min at 140 bar). Standard with Load Sensing pump and gear pump. The most important functions are electrically proportional operated from the control panel which is integrated in the armrest of the multi-adjustable seat console. The C485-XL is equipped with a hydraulically displaceable motor unit as a counter / balancing weight. On the right-hand side, the C485-XL can be optionally equipped with a hull-integrated embankment cutter with bottom or top drive. At the rear a single or double trailing knife system is optional. Colour: - Orange ral 2004 / grey ral 7012 Emission class: - EU Stage V / U.S. Tier 4 Final Fuel consumption: - 4 - 6,5 l/h Cooling system: - Keel cooling Electrics: - 12 V Propulsion: - Single 400 mm hydraulic anti-coiling auger Steering: - Power steering with a 2 x 50° steering angle Hydraulic system: - One load-sensing pump and one gear pump with (semi-)proportional valves
