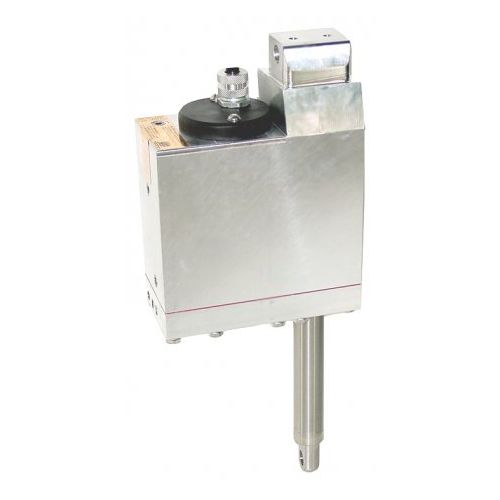

Boat cylinder

hydraulictrim tab

Linear and Dual Function Hydraulic Actuators can eliminate the need for hydraulic hoses. CMC Hydraulic Actuators are completely self contained with their own fluid reservoir. They incorporate the pump, motor, reservoir and cylinder all in the same body. This eliminates the need for multiple hydraulic components such as hoses, pumps and cylinders. Can be Utilized in almost any type of environment, are made of 100% non-ferrous materials and are totally submersible. They contain a no-leak seal and wiper that keeps dirt and water out of the working parts. Specifications: Motor type: permanant magnet 12vdc 6061-T6 aluminim alloy construction Fasteners: 18-8 stainless steel Stroke length: 5, 8, 10, 12 inches Push force (extend): See specifications for each actuator Pull force (retract): See specifications for each actuator Rate of travel: See specifications for each actuator
