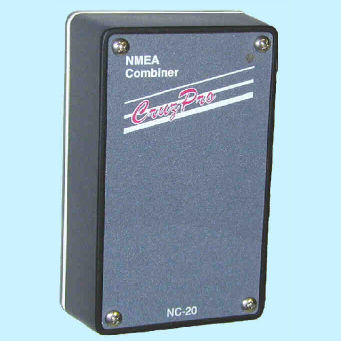

Boat network interface NC20

The CruzPro NC20 NMEA combiner accepts up to 4 or 8 channels of NMEA (and/or RS232) serial data at 4800 BAUD and combines these signals onto one RS232 compatible output line at either 4800 or 9600 BAUD (selectable). The NC20 can handle any mix of NMEA and RS232 input signals at 4800 BAUD and multiple units can be daisy-chained for more inputs than 4 or 8 channels. The input signal level can be as low 1.6 Vp-p and as high as -20 to +22 VDC without damaging the instrument. The output level is RS-232 compatible -10 to +12 VDC. The 4 channel version of the NC20 draws less than 0.05 amps and the 8 channel version draws less than 0.08 amps.
