Diesel generator set MDDCG/M/N
for ships50 Hz60 Hz

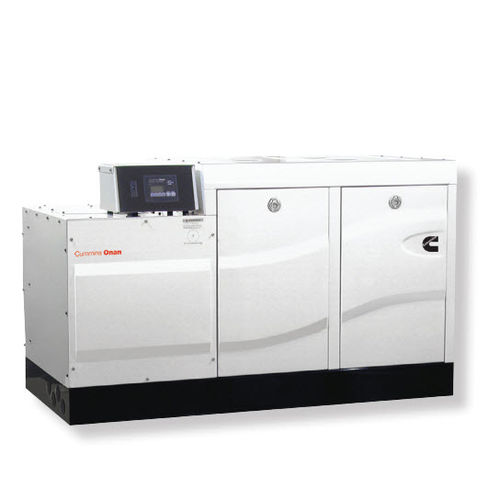

Diesel generator set - MDDCG/M/N - Cummins Marine - for ships / 50 Hz / 60 Hz
Diesel generator set - MDDCG/M/N - Cummins Marine - for ships / 50 Hz / 60 Hz
Diesel generator set - MDDCG/M/N - Cummins Marine - for ships / 50 Hz / 60 Hz - image - 2
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Application domain
for ships
Frequency
50 Hz, 60 Hz
Output power

50 kW, 55 kW, 65 kW
(68 hp, 74.8 hp, 88.4 hp)

Power in kVA

Min.: 50 kVA
(67.98 hp)

Max.: 81.25 kVA
(110.47 hp)

Voltage

Min.: 110 V

Max.: 480 V

Rotational speed

1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)

Number of cylinders

4 unit

Length

1,783 mm
(70.2 in)

Width

840 mm
(33.1 in)

Height

1,039 mm
(40.9 in)

Net weight

1,167 kg
(2,573 lb)

Description

The Cummins Onan Digital Display provides user-friendly diagnostics including extensive engine and alternator information and more Largest worldwide certified Distributor/Dealer support network in the industry The optimized mounting system greatly reduces vibration Electronic frequency control - a must for digital appliances and computers requiring quality power More than 90 years of marine experience stand behind every Cummins Onan Marine generator set 4-cylinder, 4-stroke, water-cooled marine diesel with Stanadyne DE-10 fuel pump Available with SAE J-1939 CAN data link for monitoring generator set status and diagnostics for engine and alternator Certified by Lloyd's Register for marine, offshore and industrial applications
