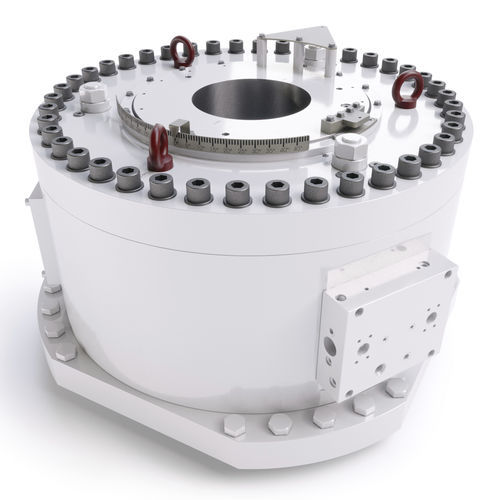

Ship steering gear system Rotary Vane

hydraulic

The Rotary Vane steering system is ideal for all sea-going vessels as well as superyachts and naval vessels. The high-end design consists of an integrated tiller and cylinder which generates the same high torque at all possible steering angles. It is safe to operate as it has only one rotating part. It also requires relatively low maintenance. This system is available for steering angles up to 65 degrees. The wide torque range of the rotary vane gives greater flexibility in choosing the rudder system. The integrated tiller and cylinder are part of the actuator, which is designed to take the full vertical load of the rudder and rudder stock. This makes a separate rudder carrier rudder redundant. ADVANTAGES Compact design An equal high torque in all steering angles Wide rudder torque range No on-site alignment required Safe in operation APPLICATION All vessels with a torque range from 45 up to 1600 kNm
