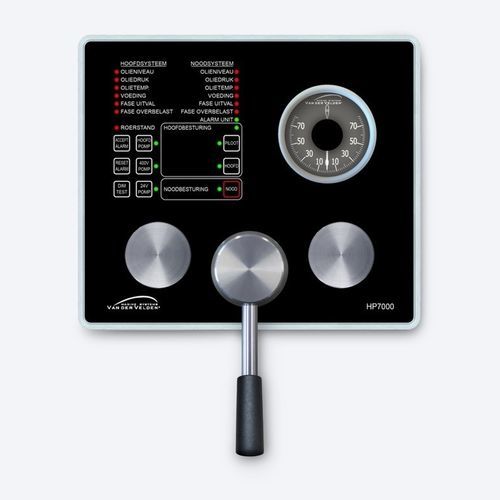

Propulsion control system HP7000

The HP7000 is the world's safest proportional hydraulic installation. The control valve in the engine room can be operated directly via a hydraulic displacement system. As the rudder position indicator has its own backup system, this unique steering installation is completely independent of the electrical system. The HP 7000 can be used in combination with the latest autopilots. The HP 7000 system consists of: Alarm, Control and Indication unit Full hydraulic steering system TMU 2700 feedback unit SP 1000 control and starter unit The HP7000 is extra safe and performs highly above its class, this is because the system can operate without electronics and was approved and tested for marine standards in enclosed spaces with ambient temperatures from -5° up to +70°. Advantages Exceptionally safe thanks to direct controls, direct link to emergency steering and two-ply connection Fail-safe because of the hydraulically powered control unit for steering, instead of electrical Easy, accurate and reliable start up Quick and easy service Suitable for vessels sailing on inland waterways Ready for Internet Of Things (IOT) APPLICATION The HP 7000 panel can be connected to additional units (i.e., alarms) and it will be possible to link to extensions for multiple operation locations and communication with external systems. This offers possibilities for indicating status information and data logging maintenance information, as well as internet applications to enable service and control from a remote location trough cloud connection.
