Boat sonar Forward LS Platinum Engine

for AUVsfor shipsmultibeam

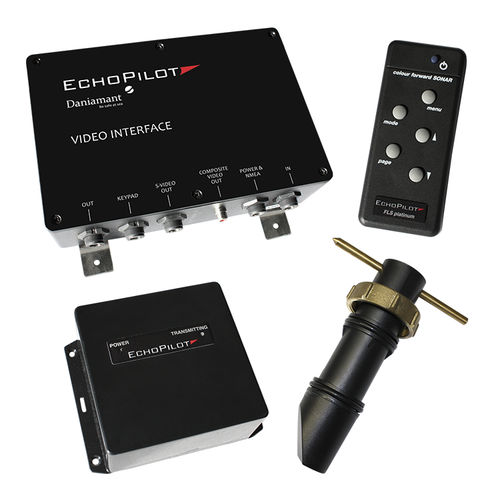

EchoPilot’s Platinum Engine is a “Black Box” system which enables any Chartplotter, Multifunction Display, or PC with a video input to become a fully functional 2D Forward Looking Sonar (FLS). FLS provides the skipper entering strange harbors or difficult anchorages the extra safety of the seabed view and underwater obstructions ahead. Piloting unfamiliar or poorly charted waters, especially at night, becomes less stressful. EchoPilot’s patented Realtime 2D Forward Looking Sonar uses an electronically controlled array to scan the seabed from straight ahead through 90° to straight down, like an underwater radar; the whole screen updates continuously. If the boat turn towards an obstruction or bank this will appear almost immediately on the screen, and will disappear as quickly when the boat turns towards safer waters, unlike steered transmit phased array system offered by some other manufacturers which may take a considerable time to update a full 90° sector. Owners have the option of having EchoPilot FLS Platinum’s output displayed at the helm only, or additional EchoPilot Video Interface Boxes may be ‘daisy chained’ to run 2 displays at different locations, each with its own keypad. Easy installation involves a single, retractable transducer and a short cable leading to a transmitter box. The proximity of the transmitter box enhances performance and reduces noise. A simple Ethernet type cable, which may be extended from the standard 12m up to 100m, takes the display signal to a ‘Video Box’ with a remote keypad. The keypad operates the sonar part of the display without the need to use the plotter or radar controls of the display.
