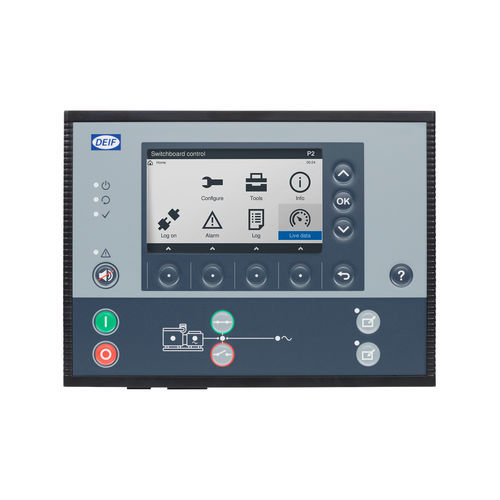

Ship monitoring and control panel PPU 300

for generator sets

The PPU 300 Standard controller is a highly configurable controller that can be customised to many different applications. It contains the functions required to protect and control a diesel generator, shaft generator, shore connection, or bus tie breaker, and their associated breakers. You can reconfigure the onboard software for all of these applications, for example to change a genset controller to a shore connection controller, using the PICUS software utility. This makes the PPU 300 Standard controller a very flexible building block in your power system. If you need extended controller functionality, you can order the PPU 300 Standard controller with a CODESYS PLC environment. For more information, see the PLC 300 CODESYS page. Part of the versatile PPU 300 range The PPU 300 Standard controller is part of the DEIF PPU 300 range of intelligent and versatile controllers with built-in load sharing and synchronisation features. It can be used for a wide range of marine and offshore applications with an extensive range of protection, supervision, and control functions, including market-leading fuel optimisation technology. The PPU 300 can be used in a power management solution where the power management logic is located elsewhere, and it handles busbar sections with ease. For general information about the PPU 300 range, see the PPU 300 main page. Highly customisable architecture All PPU 300 variants can be specified with 4 or 7 I/O module slots. The modules provide voltage and current measurement, I/O, engine control, governor and AVR functions, and communication.
