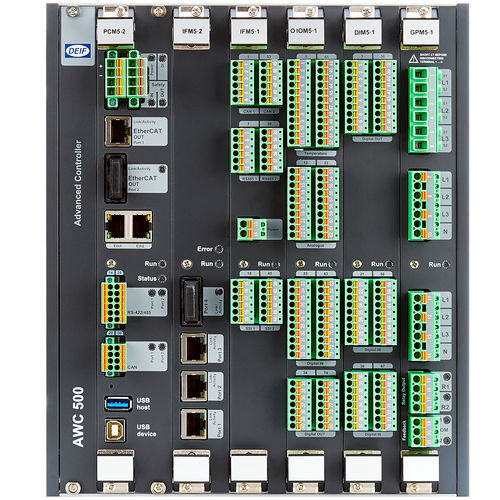

Ship controller AWC 500

The AWC 500 Advanced Controller ( PLC-based PAC ) is the latest addition to our AWC controller series. AWC 500 offers an unprecedented and unrivalled level of robustness. Not only on mechanical and electrical parameters does the AWC 500 constitute the most robust solution in the industry. The controller is suitable for cold climate or extended temperature operation. With its embedded real-time Linux operational system and CODESYS CONTROL PLC run-time, the AWC 500 also offers a maximum of stability in terms of execution of the application software. Cold start-up/Operating temperature: -40 to 70°C Storage temperature: -40 to 85 ° Climate: 55 °C 97 % RH condensing Altitude: < 4000 m Vibration : 2.1 g (3.2 to 50 Hz) 1.0g (13.2 to 100 Hz) Shock: 50 g, 11 ms, half sine Bump: 25 g, 6 ms, half sine Direct 3-phase 690 V voltage and 1/5A current measurement, with class 0.5 Power measurement Fully EtherCAT-based I/O and CAN, SSI, TCP/IP, RS-422/485 communication interfaces Operating system software with fail-safe update Fault-tolerant file system Open software development with Linux, C/C++, CODESYS (IEC 61131-3)
