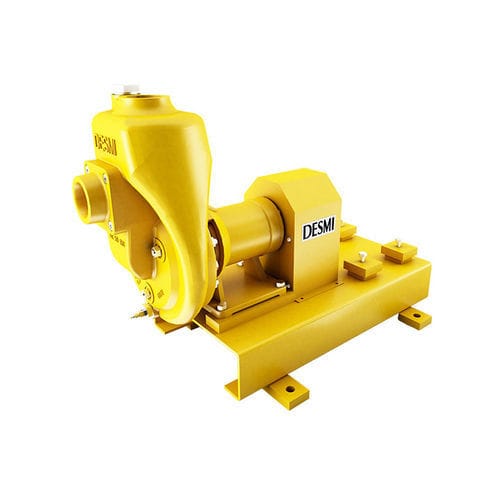

The diffuser principle in the self-priming DESMI SA centrifugal pump means that the priming capacity is not dependent on valves or other mechanical elements since it is the liquid flow which carries the air.
Within the marine industry the pumps are suitable as:
Bilge pumps
Ballast pumps
Fire pumps
Cooling water pumps
Wash-deck pumps
Fuel pumps
Wellpoint pumps
Irrigation pumps
Circulation pumps
Advantages
Open impeller design
Semi-open, non clogging high efficiency impeller allowing the pump to operate on dirty water.
Replaceable wear plate
To keep the pump at max. capacity even after working with abrasive fluids for a long time, the tolerance between impeller and wear plate may be adjusted by way of shims behind the replaceable wear plate.
Mechanical shaft seal
A reliable, spring-loaded, mechanical shaft seal ensures rapid suction, and shaft wear and stuffing box tightening are avoided.
Check valve mounted at a high level
The pump check valve is mounted well above the impeller inlet. Consequently, the pump will not - in case of a check valve leakage - lose the priming water which would result in a loss of priming ability.
Heavy bearing design
Heavy shaft and bearing design provide long life even in case of belt drive.
