Fixed thruster
for AUVsROVhydraulic

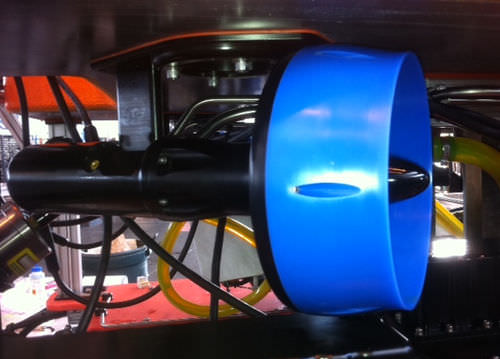

Fixed thruster - DOER Marine - for AUVs / ROV / hydraulic
Fixed thruster - DOER Marine - for AUVs / ROV / hydraulic
Fixed thruster - DOER Marine - for AUVs / ROV / hydraulic - image - 2
Fixed thruster - DOER Marine - for AUVs / ROV / hydraulic - image - 3
Fixed thruster - DOER Marine - for AUVs / ROV / hydraulic - image - 4
Fixed thruster - DOER Marine - for AUVs / ROV / hydraulic - image - 5
Add to favorites
Compare this product


Characteristics

Type
fixed
Application domain
for AUVs, ROV
Power source
hydraulic
Power

1.9 kW, 3.2 kW, 4.2 kW
(2.6 hp, 4.4 hp, 5.7 hp)

Thrust

0.9 daN, 1.8 daN, 2.1 daN

Description

2hp: Forward Thrust: 100lbs Reverse Thrust: 50lbs Nozzle OD: 7.1” Propeller OD: 5.8” Hydraulic Pressure: 3,000psi (206 bar) Max Thrust RPM: 2230 Hydraulic Power: 2.3hp (1.9 kW) Required Flow: 1.3 GPM (4.9 lpm) Integrated 485 – 4 wire valve 4hp: Forward Thrust: 200lbs Reverse Thrust: 150lbs Nozzle OD: 10.8” Propeller OD: 9.8” Hydraulic Pressure: 3,000psi (206 bar) Max Power RPM: 1800 Hydraulic Power: 4.4 hp (3.2 kW) Required Flow: 2.5 GPM (9.36 lpm) 5hp: Forward Thrust: 235lbs Reverse Thrust: 175lbs Nozzle OD: 10.8” Propeller OD: 9.8” Hydraulic Pressure: 3,000psi (206 bar) Max Power RPM: 1940 Hydraulic Power: 5.6hp (4.2 kW) Required Flow: 3.2 GPM (12.0 lpm)
