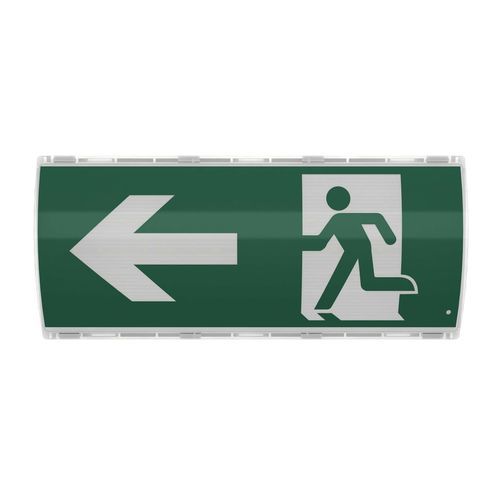

LED exit sing lights available with various pictograms available for use as lead, and emergency/exit lights. Standard supplied with 3hours battery powered emergency circuit and self-test option. Ceiling- or wall mount available.
Technical Information
Viewing distance: 24m
IP Rating: IP65
Light Source: 4Watt
65Lumens per Watt
Cool White 6000K
CRI > 80
Power Source: 220-240Vac 50~60Hz (120Vac optional)
3hours battery powered emergency circuit
Charge time: 24 hours
Ambient
Temperature: Operating temperature +45°
Cable Entry: 4 x M20 gland with internal 3-pole terminal block
Installation: Screw (heavy spring clips for ceiling max. 1.37 in (35
mm)
Mounting: Surface mount (recessed mount optional)
Fixture weight: 1.87 lbs (0,85 kg)
