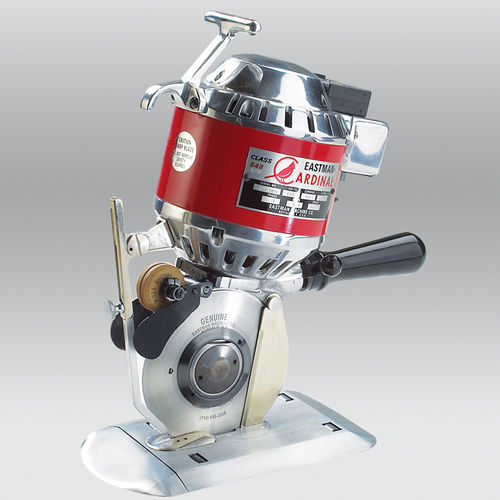

Rotary-knife cutting machine Standard Cardinal®

electricfor shipyards

The Cardinal® model 548 is Eastman’s most widely-used round knife machine. It is available in two different blade sizes, and it is designed with a lightweight, powerful motor to provide optimum cutting configuration. Eastman round knife machines are ideally suited for cutting large radius curves, straight lines and are applicable for a wide range of difficult to cut materials Available with two different blade sizes Powerful motor provides versatility for cutting a wide range of materials Blades are available in carbon steel, high speed steel, grooved and PTFE coated Motors 110V, 1ph, 50/60Hz 220V, 1ph, 50/60Hz High speed (3600/3000 RPM) Low speed (1800/1500 RPM) Horsepower 0.34hp, 1ph 0.48hp, 3ph Weight 21 lbs. (9.52kg) Blades Standard: Carbon Steel Optional: High Speed Steel, Grooved, PTFE Coated Sharpener Stones Standard: 120 Heavy Optional: 150 Medium, 220 Fine Options Knife lubricator, stationary base plate Blade Size 5.25 in. (13.3 cm) 6 in. (15.2 cm) Cutting Capacity 3.125 in. (7.95cm) 3.5 in. (8.89cm) Disclaimer All indicated specifications, dimensions, weights and performance data are approximate and subject to change without notice.
