Shipyard storage rack CRA-315

for cutting table feed

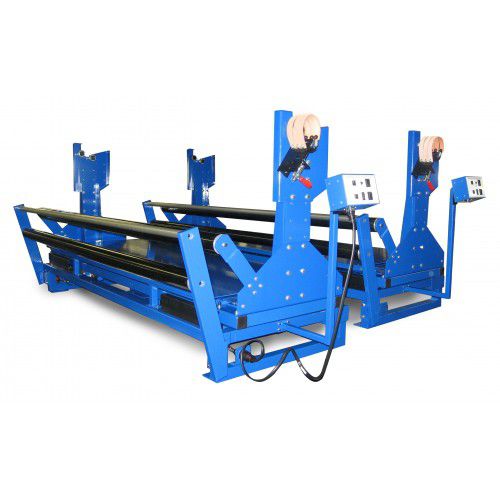

The Eastman Roll Stand System allows the user to easily handle rolled goods for spreading onto the table, maintaining precise alignment of each ply with a photo-electric edge control unit. Image highlights chute and roller assembly for feeding multiple rolls of material simultaneously. Available at 72″ (1.8m) wide, and greater Automatic edge control included Frozen bar, core stops optional Up to 2-3/4″ heavy-duty roller tubes with 3-strap brake Shown with chute and roller assembly for feeding multiple rolls Single or multiple unit configuration for feeding several layers of material Not recommended for stretchy fabric or vinyl Custom configurations, widths and roll weight capacities available Width 72 in. (1.8m)+ Custom widths available in 6 inch width increments (15.2cm) please contact the factory for more information. Standard Weight Capacity >300 lbs. (136 kg), less than 1,000 lbs. Maximum Roll Diameter 20 in. (51 cm) Power Requirements 110V at 15 amps, 1 ph 220V at 8 amps, 1 ph
