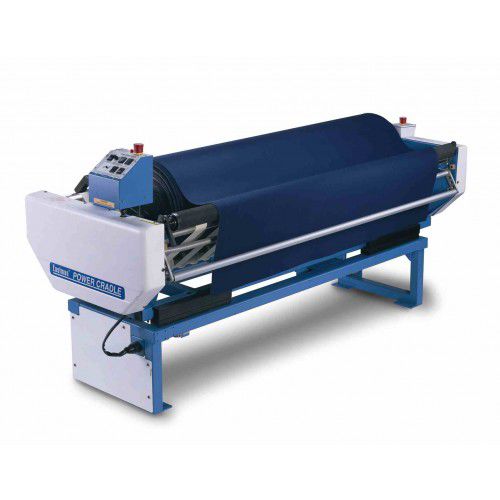

Shipyard storage rack CRA series

for fabric rolls

The Power Cradle System provides an efficient way of feeding a variety of material to the cutting system from a cradle, in a relaxed or tensionless state with precise edge control. This system is ideal for tightly wound materials like canvas, kevlar, cordura and other industrial textiles. Please contact the factory to discuss optional features and configurations available. Variable speed rate controlled by a dancer bar Tilt-back option for loading heavy material rolls Dual-cradle configuration available Optional upright assembly to enhance feeding flexibility Available in mirror image or standard configuration Automatic edge control included Reverse Roll Attachment Uprights / Expandabar Uprights / Frozen Bar Out of cloth sensor Out of Cloth switch for use with Blue Jay system Loop Sensor for tension-free spreading Extended dancer arm Dual-cradle configuration available Width 66 in. (1.7m) 72 in. (1.8m) 78 in. (2.0 m) 96 in. (2.4 m) 108 in. (2.7 m) Custom widths available in 6 inch width increments (15.2cm) please contact the factory for more information. Standard Weight Capacity 300 lbs. (136 kg) Maximum Roll Diameter 24 in. (61 cm) Custom-built systems available for up to 48 in. (1.2m) diameter rolls. Maximum weight capacity reduced to 250 lbs. (113kg) with 48" diameter rolls. Power Requirements 110V at 15 amps, 1 ph 220V at 8 amps, 1 ph Availabte in mirror image or standard configuration Reverse Roll Attachaient Upnghts/ Expandabar Upnghts/ Froœn Bar •Out of cloth sensor •Out of Cloth swtch for use with Blue Jay System •Loop Sensor for tensiorvfree spreading •Exlended dancer arm •Dual-cradle configuration availabte
