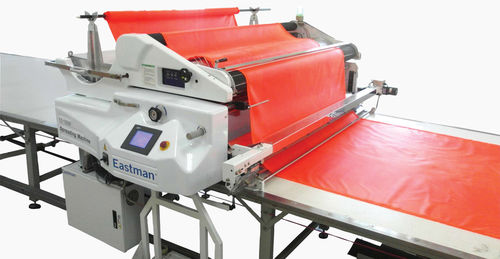

Spreading machine with cutting system ES-1800 series

The Eastman ES-1800 Series Spreading System is suitable for all types of fabrics and offers multiple functions for fast and easy spreading heights up to 7.9” (20cm). Available in several sizes, the ES-1800 is the perfect solution for accurate spreads. Spread one-way (face-up) or zig zag (face-to-face) LCD touch screen control panel with multiple languages Ergonomic material loading position Dual extension system for maximum tension control Emergency stop control Safety zone indicated with highlighted bar Advanced end cutter design ensures end cutting quality Timing belt and encoder system makes more accurate spread lengths Spreading Width - Max ES-1800/6 ft. – 64 in. (1655mm) ES-1800/7 ft. – 76 in. (1955mm) ES-1800/8 ft. – 88 in. (2255mm) Table Width ES-1800/6 ft. – 72 in. (1830mm) ES-1800/7 ft. – 84 in. (2130mm) ES-1800/8 ft. – 96 in. (2430mm) Spreading Speed 106 yard/min. (97m/min) Maximum Spread Height 7.87 in. (20 cm) Pass through Height 9.05 in. (23cm) Spread Length Accuracy .11 in. (+/- 3mm) Edge Alignment Accuracy .07 in. (+/- 2mm) Roll Diameter - Maximum 28 in. (72 cm) Roll Weight Capacity 397 lbs. (180 kg)
