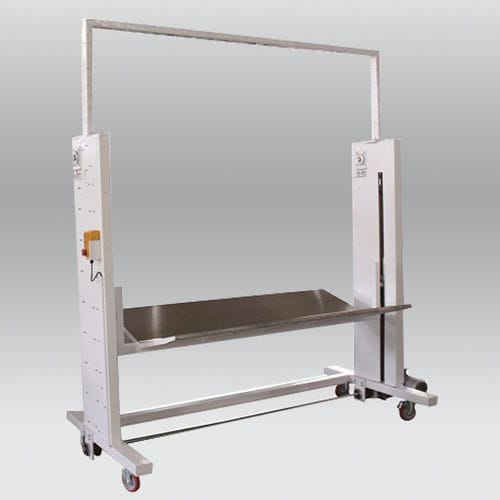

Shipyard storage rack EFL-200

for cutting table feedfor fabric rolls

The Eastman EFL-200 is an easy way to load fabric rolls to spreading machines with ease and speed. It is capable of managing rolls up to 200kg (440lbs) at several different widths. Motor driving load single fabric roll to spreader V-shape loading plate turns automatically when it reaches to up position; fabric roll drops into spreader’s cradle easily Maximum load capacity up to 200kg (440lbs) Floor level v-shape plate enables placing roll to plate easily Weight Capacity 200kg (440lbs) Power Requirement 220 or 380V / 3ph / 1.5kW Max. width of fabric EFL-200 6' – 63 in. / 1600mm EFL-200 7' – 75 in. / 1900mm EFL-200 8' – 87 in. / 2200mm Loading Height 55.11 in. / 1400mm 57.90 in. / 1470mm option Features •Motor driving load single fabric roll to spreader •V-shape loading plate turns automatically when it reaches to up position: fabric roll drops into spreader's cradle easily •Maxim u m load ca pacity up to 200kg (4401bs) •Floor level v-shape plate enables pladng roll to plate easily
