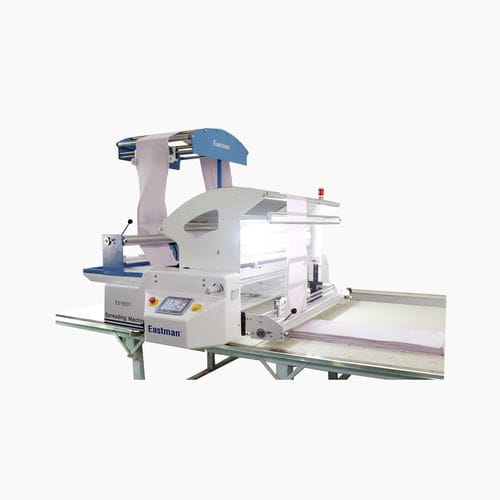

Spreading machine with cutting system ES-550 series

The Eastman ES-550 is an automatic spreader dedicated for tubular knit fabrics and available with an optional quarter turn. It features spreading speeds up to 65m/minute. Pro-face 7" wide color touch screen with smart touch control Easy to learn and control Spreading mode, length, layers, speed and tension control can be set easily Multi-language interface available One operator Nine levels of spreading speed - easy control of spreading acceleration and deceleration Out of fabric detector and brake Front fabric feeding guide LED Light box Optional quarter turn device Spreading Width - Max Contact the factory Spreading Speed 65m / min Maximum Spread Height 7.87 in. (20 cm) Pass through Height 9.05 in. (23cm) Spread Length Accuracy .11 in. (+/- 3mm) LCD color touch screen with intuitive user interface makes it easy to learn and contrai. Parameter settings such as spreading mode, spreading lengih. layers. speed and tension can be set easily and is available in multiple languages Single operator to increase efficiency of spreading 9 levels of spreading speed Out of fabric detector and brake; the machine will stop working with audible and Visual alarm when no cloth is detected and return to start position automatically Servo contrai Large top arc feeding plate enables the fabric to be relaxed as much as possible
