Bore alignment system XT950

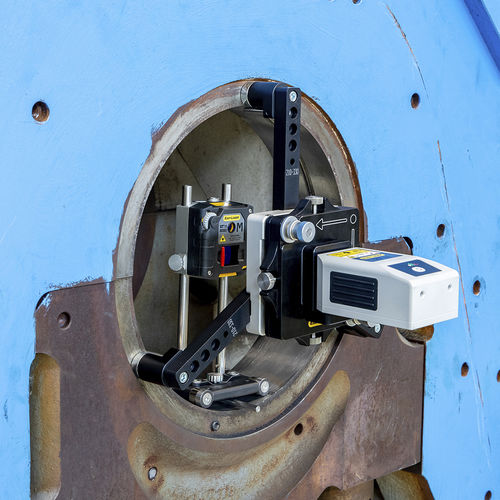

The Easy-Laser® XT950 Bore alignment system is used for the precise alignment of bore center lines, bearing journals, and cylindrical objects. Designed for applications such as engines, compressors and gearboxes, it accurately measures bore sizes between 80 and 500 mm (3.15–19.68 inches). Flexible mounting options Different brackets makes the system highly versatile, and makes it easy to mount the detector in bores of varying widths. The magnetic feet hold the detector perfectly for stable and precise measurements. Intuitive user experience The Bore Center program in the XT app guides the user through the entire measurement process, contributing to simple operation. The system automatically calculates the bearing journals' positions in relation to each other horizontally and vertically. You can evaluate the results with different best-fit calculation methods, analyze different choices of reference points, and set tolerance values. High precision over long distances Each component is crafted for maximum accuracy and stability, and ensures reliability with a resolution of 0.001 mm (0.05 mils) over distances up to 40 m (130 feet). This makes the system suitable for both manufacturing environments and field services.
