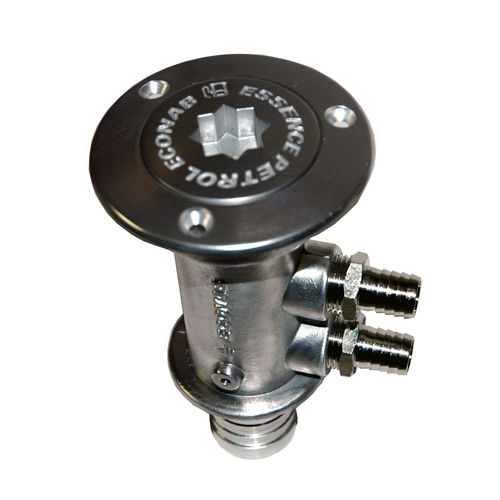

Threaded deck fill ECES06

anti-overflowaluminum

When filling the tank, the fuel passes through the vent pipe. Degassing passes through the vent pipe and unlike a standard fitting, the fuel instead of being discharged directly out through the vent, flows directly back into the tank.When the tank is full, it creates a back pressure. The fuelling nozzle automatically stops the flow before any fuel spillage occurs therefore preventing any overspill from the vent or the filler. Made entirely of aluminium Anodised surface treatment Fixation with three screws to 120 ° Grooved hose connection Ø16 mm Filling tube Ø 38 mm depending on the model Flange Ø 94 mm Filler width Ø 65 mm Filler height 150 mm Exceeds the deck 8 mm Deck thickness max 45 mm Integrated anti-theft grid Ground terminal Serial number Optional fittings for vent pipe Ø 19 mm
